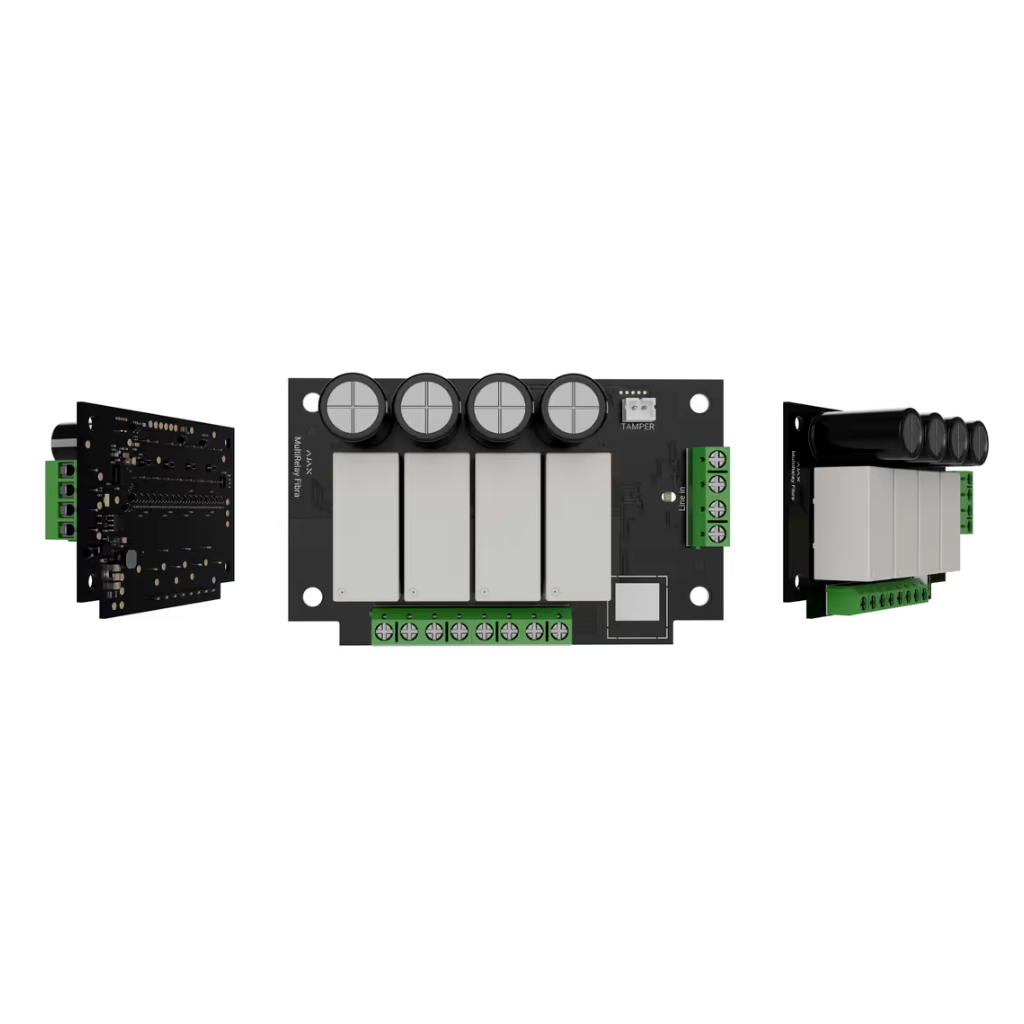

- Relay module with potential-free contacts for remote power supply control.
- Compatibility Hubs:
Hybrid Hub (2G)
Hybrid Hub (4G)
- Number of relays: 4 relay outputs.
- Relay modes: bistable, pulse.
- Operating time for impulse mode from 10 sec to 2 h.
- Temperature protection: above +/- 85ºC.
- If enabled, the current state of the contacts remains the same after a power failure.
- Installation in Case housing (sold separately).
- Fibre Line Power: 8.5 - 30 Vdc, up to 185 mW.
- Powered from the hub. The module does not supply additional power to connected devices.
- Сmax load current:
5 A at 30 Vdc
10 A at 230 Vac
- Dimensions: 90 × 55 × 30 mm.
- Weight: 84 g.
