  2. DOORPROTECT-G3-FIBRA-WH

DOORPROTECT-G3-FIBRA-WH

https://smartsecur.es/web/image/product.template/18778/image_1920?unique=97cce44

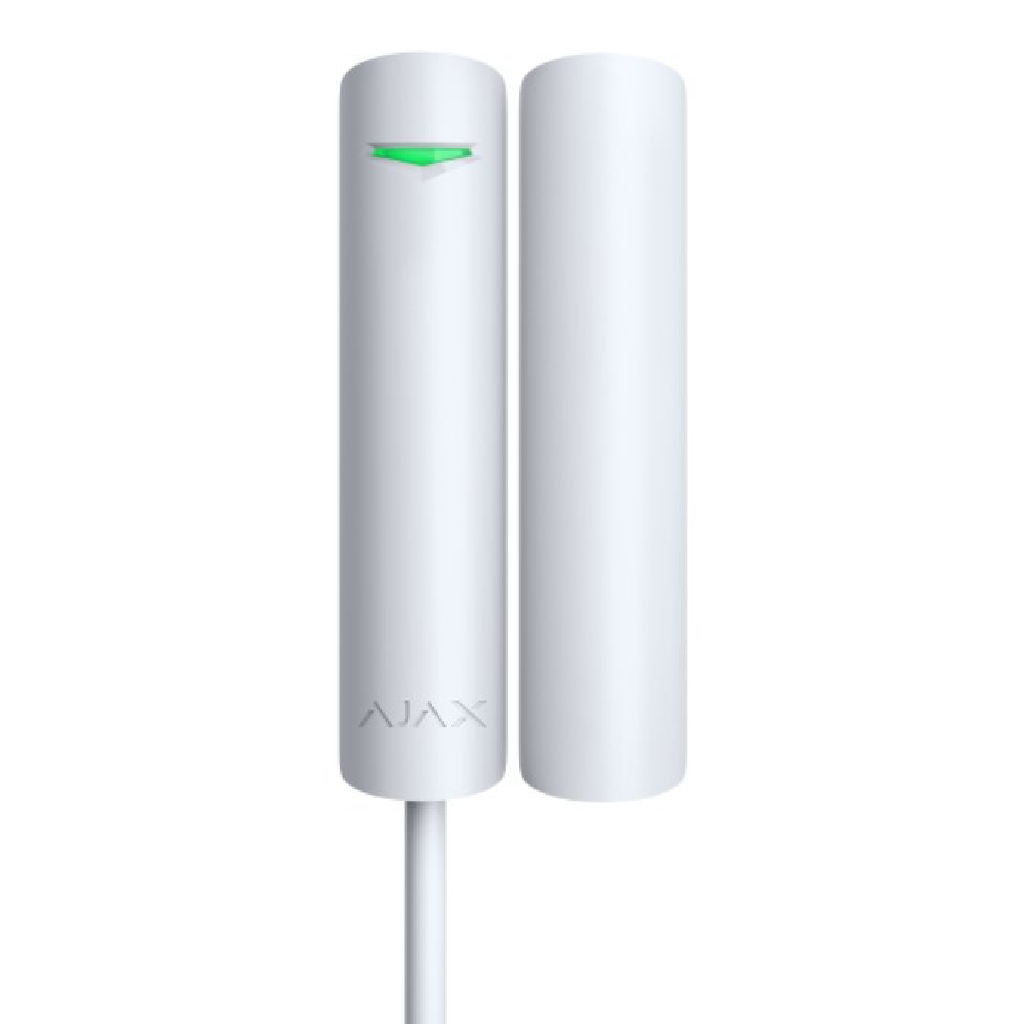

Ajax DoorProtect G3 Fibra. White. G3

Not Available For Sale

    This combination does not exist.

    Contact Us


    Specifications for DOORPROTECT-G3-FIBRA-WH

    Colour White
    Detectors Magnetic contact


    • Opening detector with impact, tilt and magnetic masking sensors.
    • Hub Hybrid (2G) and (4G) compatibility.
    • Fibra communication technology.
    • 4-core wired connection.
    • Fibra line length up to 2,000 metres.
    • Encrypted communication.
    • Sensors:
    •     1 accelerometer
    •     1 magnetic masking sensor
    •    2 reed relays (allows magnet to be positioned left or right)
    • Protection against reed relay bounces.
    • Input for connecting an additional detector.
    • 3 levels of sensitivity of the impact sensor.
    • Option to ignore a single impact.
    • Tilt sensor activation threshold from 5° to 25°.
    • Spacers, 2 pieces.
    • Tinkerbell function.
    • Tamper alarm, 2 tamper switches.
    • Magnetic masking sensor.
    • Fixing screw.
    • Protection against counterfeiting.
    • Power supply: 5-30 V⎓, up to 35 mW.
    • Detector dimensions: 102 × 21 × 19.2 mm.
    • Magnet dimensions: 102 × 21 × 19.2 mm.
    • Detector weight: 62 g.
