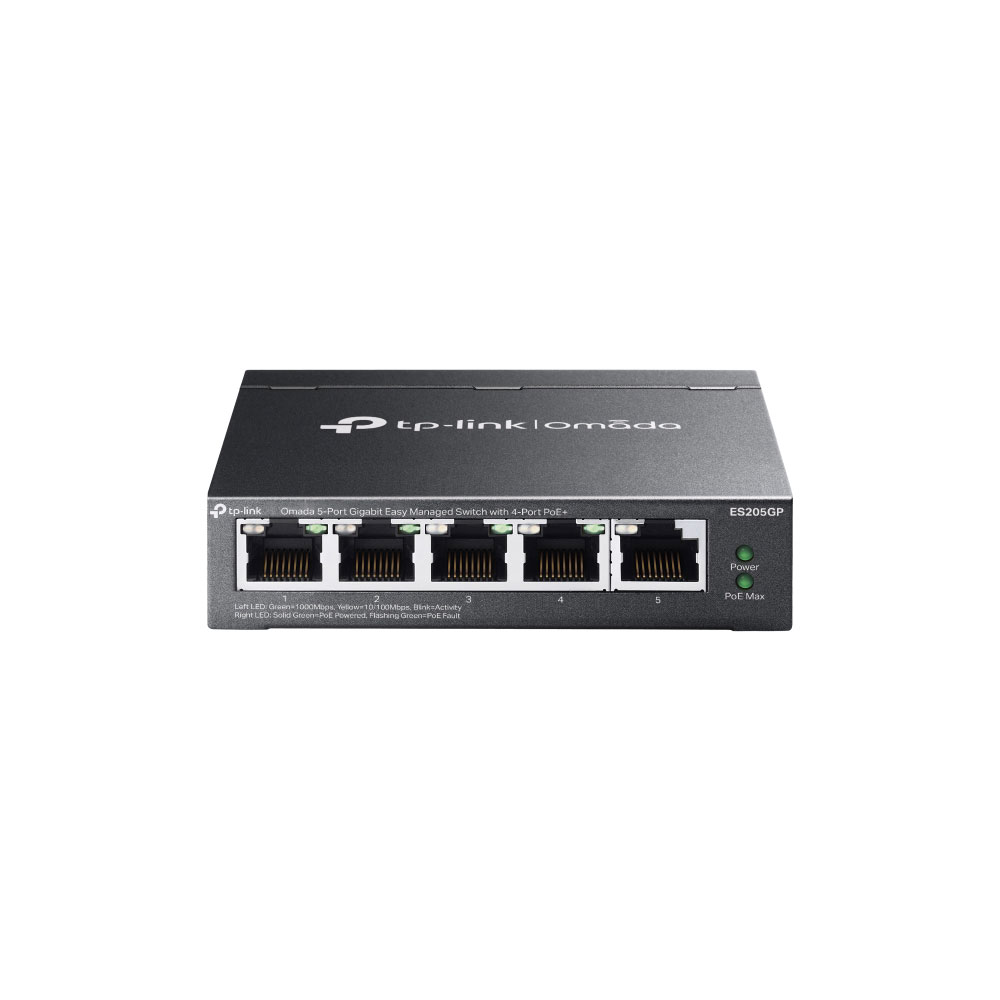

ES205GP
5-Port Gigabit Easy Managed Switch with 4 PoE+
Specifications for ES205GP
| Brand | TP-Link |
- Displays information about network traffic, allowing performance monitoring and problem detection
- Link aggregation and port mirroring
- Automatic loop prevention, VLAN and IGMP Snooping
- Centralised management in the cloud via the web or the Omada application
- QoS for traffic prioritisation, PoE Auto Recovery and port isolation for reliable surveillance networking
- PoE transmission up to 250 metres
- Supports fast PoE and perpetual PoE
- Plug & Play for instant connectivity and easy configuration of additional functions
- 5 RJ45 10/100/1000 Mbps ports (ports 1 to 4 support PoE+)
- Auto-negotiated / Auto MDI/MDIX ports
- PoE power consumption: ≤30W per port
- Total PoE delivery of 65 W
- Standards and protocols:
- IEEE 802.3i:10BASE-T Ethernet
- IEEE 802.3u:100BASE-X Fast Ethernet
- IEEE 802.3ab:1000BASE-T Gigabit Ethernet
- IEEE 802.3x: Flow Control
- IEEE 802.3af: PoE
- IEEE 802.3at: PoE+
- IEEE 802.1p: Traffic Class Expediting and Dynamic Multicast Filtering
- IEEE 802.1q: Virtual Bridged Local Area Networks
- Type of Forwarding: Store-and-Forward
- MAC addresses: 8K
- 10 Gbps switching capacity
- Packet forwarding rate: 7.44 Mbps
- 4 Mbit packet buffer
- Jumbo frame 15 KB
- Centralised management via Omada cloud-based controller or via TPLINK-001 (OC300) or TPLINK-002 (OC200) hardware drivers
- Power supply: 53.5V DC, 1.31 A
- Storage temperature range -40°C ~ +70°C
- Storage humidity of 5% ~ 90% (non-condensing)
- Operating temperature of 0°C ~ +40°C
- Operating humidity 10% ~ 90% (non-condensing)
- Ports with surge protection up to 6 kV
- Metal housing without fan
- Tabletop or wall installation
- Dimensions: 100 (W) x 25 (H) x 98 mm
- Includes power adapter, power cord, rubber feet and quick installation guide
- CE, FCC and RoHS certification
