ESB1021

https://smartsecur.es/web/image/product.template/18004/image_1920?unique=dd3a1c9

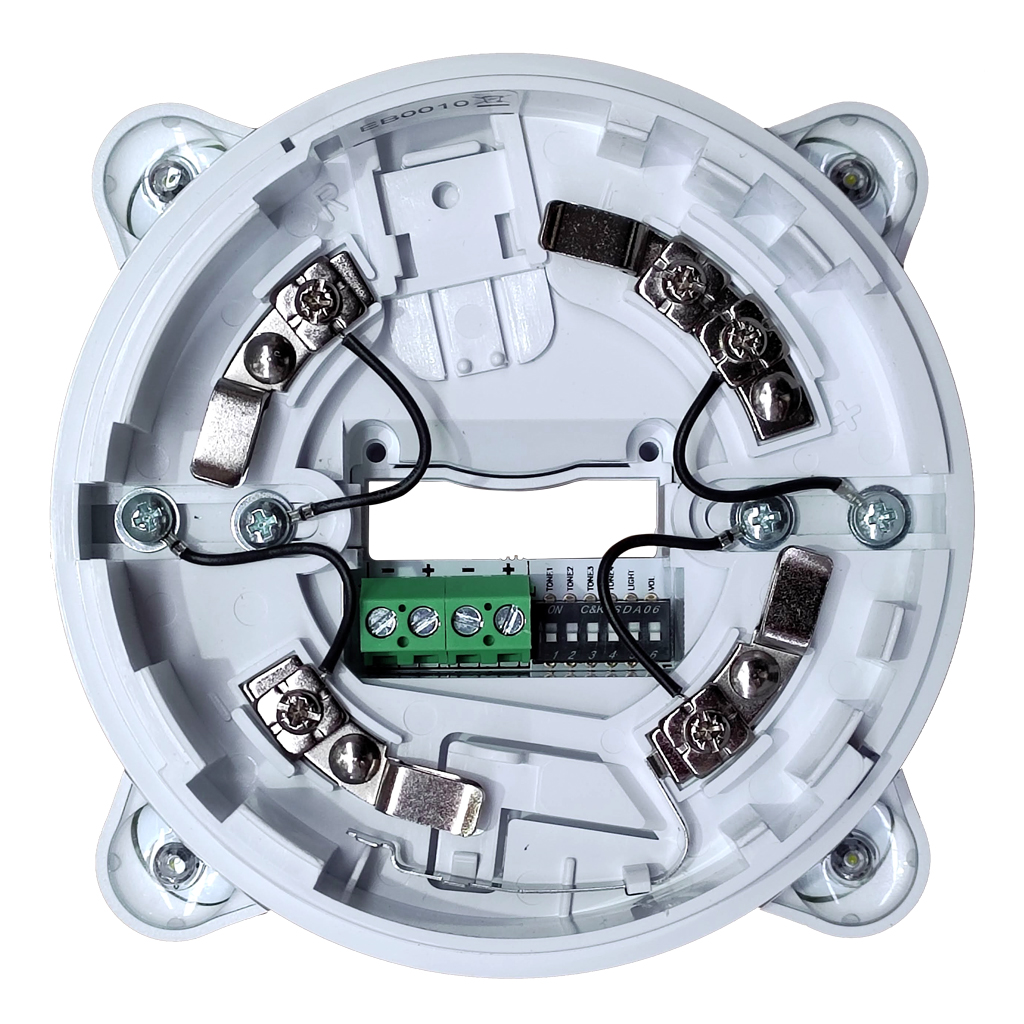

Base with optical-acoustic siren for ENEA series detectors with isolator. Low consumption

Not Available For Sale

    This combination does not exist.

    Contact Us


    Specifications for ESB1021

    Analog Sirens

    - Supply voltage: 20 - 30V.
    - Standby consumption: 500µA.
    - Maximum consumption: 23mA.
    - Installation method: On the ceiling, below the detector.
    - Maximum installation height: 3m.
    - Flashing light frequency: 0.5Hz.
    - Flashing light colour: White.
    - Number of selectable tones: 14.
    - Sound pressure @ 1 m: 98dB.
    - IP rating: IP21.
    - Operating temperature -10 to 55°C.
    - Synchronisation: Yes.
    - Multi-colour indicator LED: Yes.
    - Detector base included: Yes.
    - Built-in short-circuit isolator (EN54-17): Yes.
    - Dimensions: 112 x 112.5 x 53.3 mm.
    - Weight: 220 g.
