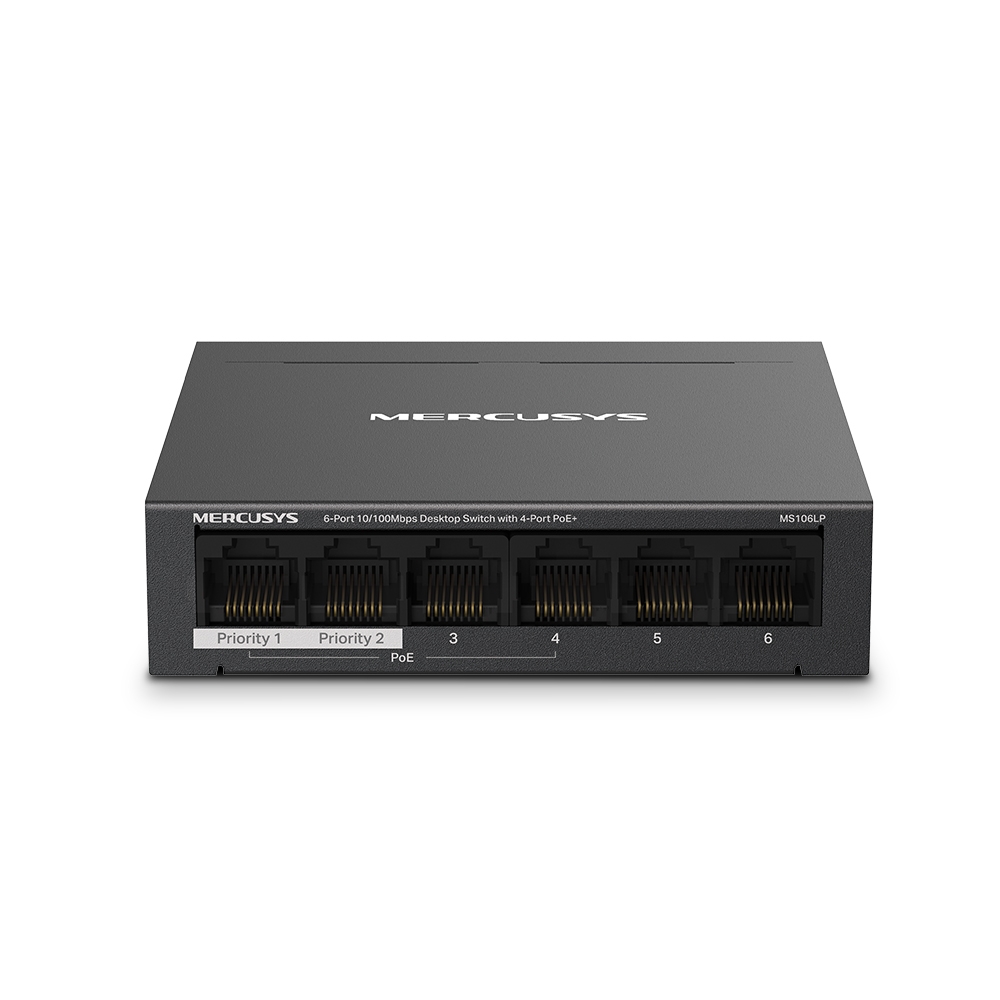

MS106LP

Mercusys 6-port Fast Ethernet Switch with 4 PoE+ ports

This combination does not exist.

Brand	TP-Link

Unmanaged Desktop Switch with 6 10/100 Mbps RJ45 ports
4 ports with PoE+ delivery up to 30?W per port
Total PoE delivery: up to 40?W
Compatible with IEEE 802.3af/at compliant PD devices
Auto-Negotiation and Auto MDI/MDIX
Switching capacity: 1.2 Gbps
MAC Address Table: 2K with self-learning and self-aging
Forwarding method: Store and Forward
Advanced Modes: Extend Mode (PoE range up to 250 m), Isolation Mode, Recovery Mode
Standards and protocols: IEEE 802.3i, 802.3u, IEEE 802.3x
Type of wiring:
- 10BASE-T: UTP/STP Cat.3 or higher (≤100 m)
- 100BASE-TX: UTP/STP Cat.5 or higher (≤100 m)
LEDs: power, link/activity, PoE status
PoE power supply per pin: Power+ on 3/6, Power- on 1/2
Maximum consumption:
- Without PD connected: 1.87 W
- With 40?W PD connected: 44.8 W
Thermal dissipation:
- Without PD connected: 6.34?BTU/h
- With 40?W PD connected: 152.32?BTU/h
Operating temperature: 0?°C to 40?°C
Storage temperature: -40?°C to +70?°C
Operating humidity: 10-90?% non-condensing
Storage humidity: 5-90?% non-condensing
Dimensions: 99,8 × 98 × 25 mm
Fanless design
Mounting: table-top
Certifications: CE, RoHS
