MS110P

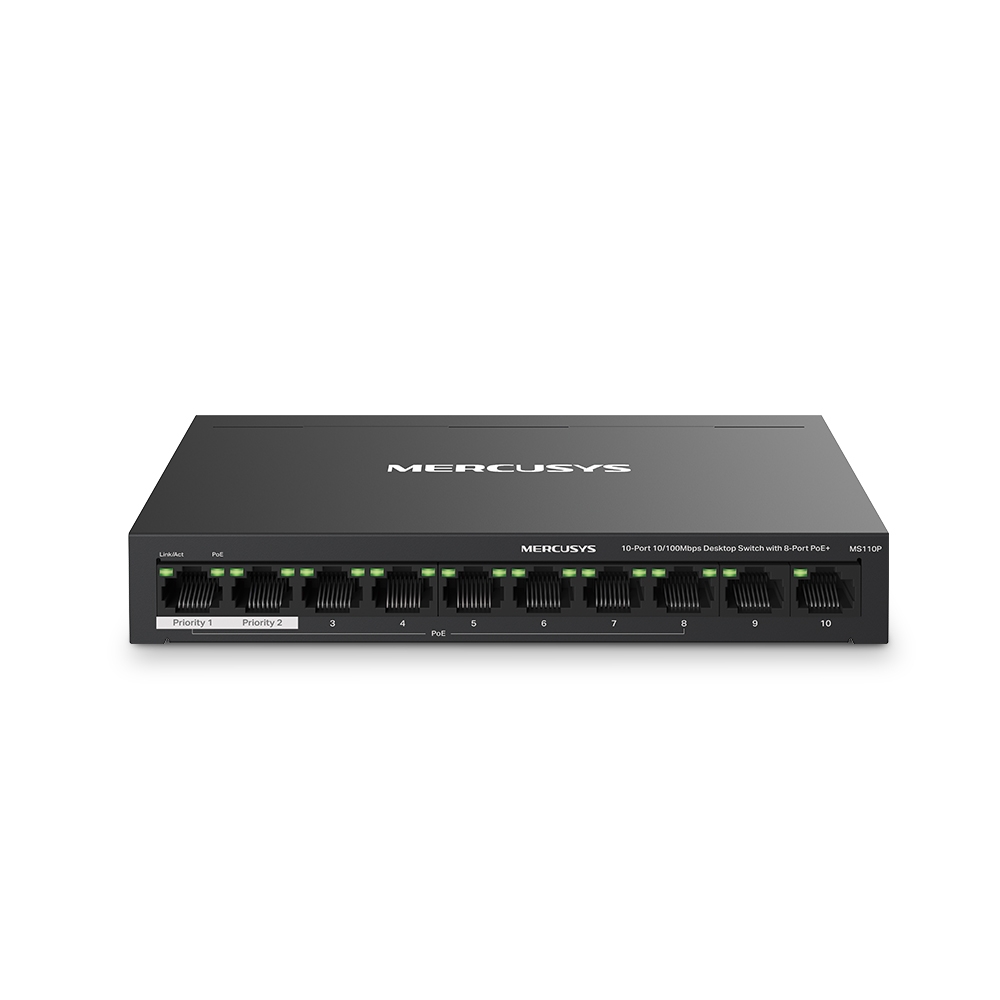

Mercusys 10-port Fast Ethernet Switch with 8 PoE+ ports

This combination does not exist.

Unmanageable desktop switch in compact housing
10 ports RJ45 10/100 Mbps with Auto-Negotiation and Auto MDI/MDIX
8 ports with PoE+ delivery up to 30?W per port
Total PoE delivery: up to 65?W
Compatible with IEEE 802.3af/at compliant PD devices
Switching capacity: 2 Gbps
MAC Address Table: 2K with self-learning and self-aging
Forwarding method: Store and Forward
Advanced Modes: Extend Mode (PoE up to 250 m), Isolation Mode, Recovery Mode
Flow control: yes
Standards and protocols: IEEE 802.3i, 802.3u, 802.3x
Type of wiring:
- 10BASE-T: UTP/STP Cat.3 or higher (≤100 m)
- 100BASE-TX: UTP/STP Cat.5 or higher (≤100 m)
LEDs: power, link/activity, PoE status
PoE power supply per pin: Power+ (3/6), Power- (1/2)
Maximum consumption:
- Without PD connected: 2.96 W
- With 65?W PD connected: 77.52 W
Thermal dissipation:
- No PD connected: 10,064 BTU/h
- With 65?W PD connected: 263,568 BTU/h
Operating temperature: 0?°C to 40?°C
Storage temperature: -40?°C to +70?°C
Operating humidity: 10-90?% non-condensing
Storage humidity: 5-90?% non-condensing
Fanless design
Mounting: table-top
Dimensions: 171 × 98 × 27 mm
Certifications: CE, RoHS
