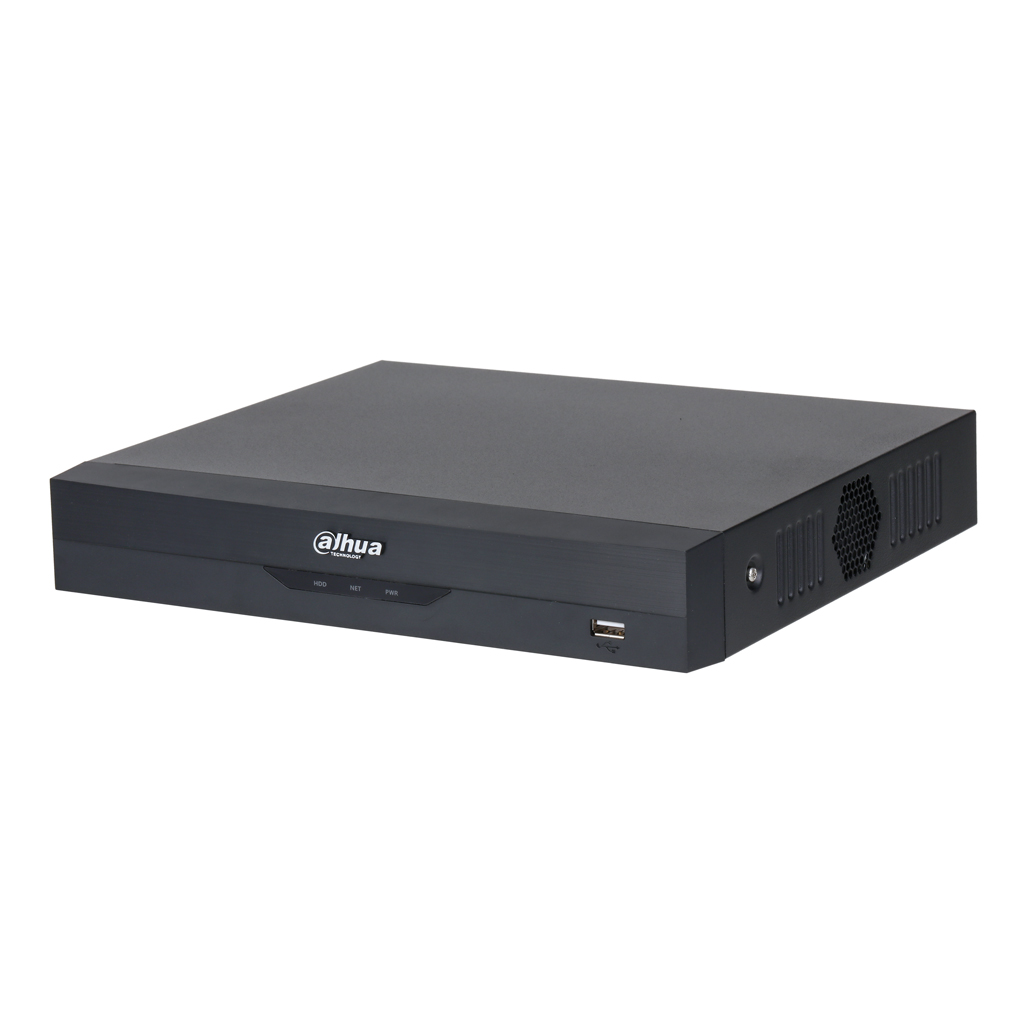

NVR2216-16P-I2
NVR 16ch 144Mbps H265 HDMI 16PoE 2HDD I/O AI
This product is no longer available.
Specifications for NVR2216-16P-I2
| Brand | Dahua |
| Max Resolution | 8 Mpx |
| Audio | Integrated microphone |
| Video outputs | 1 HDMI, 1 VGA |
| Ports PoE | 16 PoE |
| HDD capacity | 2 HDD |
| IP channels | 16 IP Channels |
| I/O alarm | No |
| Intelligence (IVS) | AI Series |
| Bandwidth | 144 Mbps |
- Decoding capability:
AI disabled => 1CH-12MP@25IPS, 1CH-8MP@25IPS, 2CH-5MP@25IPS, 3CH-4MP@25IPS and 6CH-1080P@25IPS.
AI enabled => 1CH-8MP@25IPS, 1CH-5MP@25IPS, 2CH-4MP@25IPS and 4CH-1080P@25IPS.
- 4 SMD Plus channels. AI search with target classification (People, Vehicles).
- 1 Channel Face detection & Face Recognition. 10 Face databases up to 5,000 facial images. Maximum 4 facial images per second.
- 1 Channel Perimeter Protection. Secondary person/vehicle recognition for tripwire and intrusion.
- Supports conventional ONVIF and RTSP protocol cameras.
- AC100V ~ 240V (Max 10W (Without HHD)).
- 16 PoE Ports (Max 25.5W@RJ45) up to 130W.
- Dimensions and weight: 375x329.3x53mm / 2.63Kg (Without HDD).
*WizSense Series: Perimeter Protection, Face detection & Face Recognition, SMD Plus.
