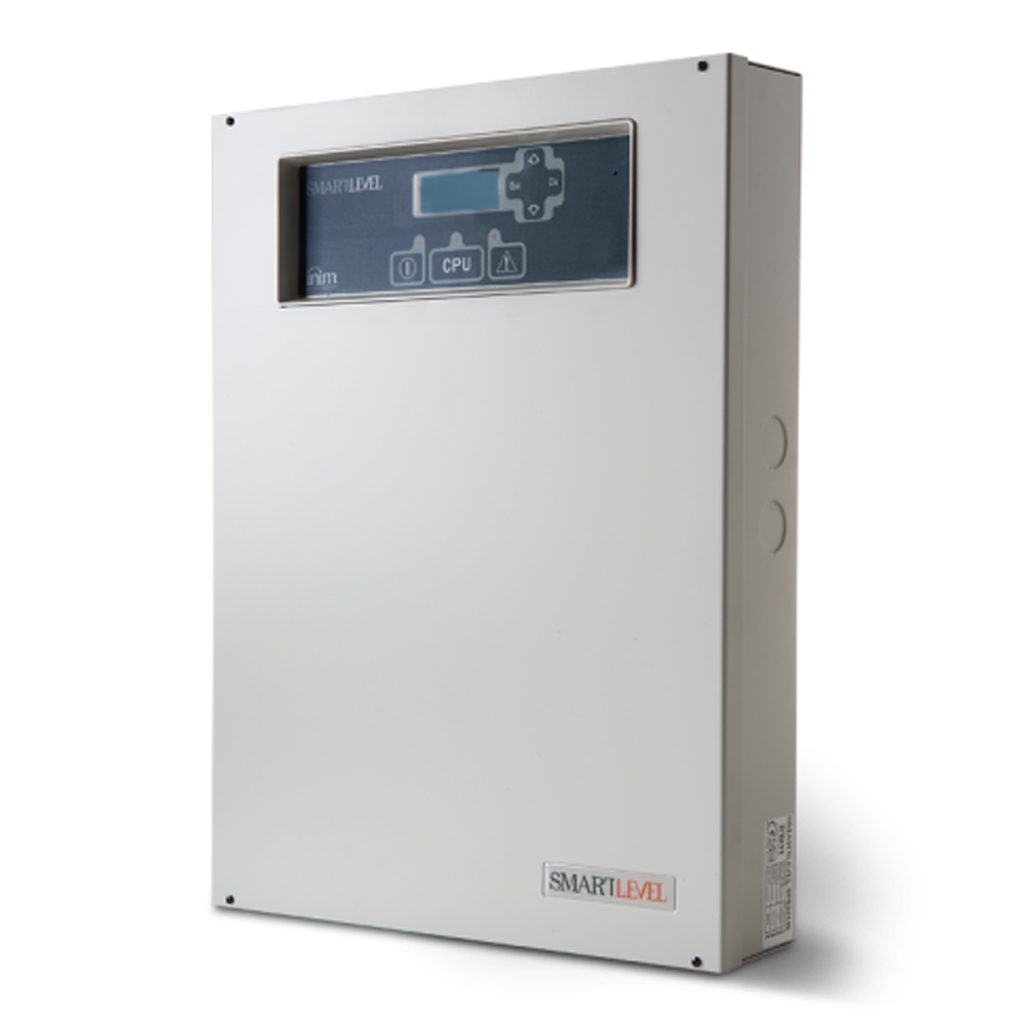

SPS24160G

https://smartsecur.es/web/image/product.template/18043/image_1920?unique=3d60d0c

Switching power supply and battery charger. 27.6V/4A. LCD and RS485 bus. In metal box

Not Available For Sale

    This combination does not exist.


    Specifications for SPS24160G

    Device Inim Power supply

    • 24 V, 4 A power supply station with LCD display and RS485 connection.
    • Input voltage 230 V~ -15% +10%, 50-60 Hz.
    • Maximum mains consumption (230 V~): 1.1A.
    • Nominal output voltage 27.6Vdc, range 18 to 27.6Vdc.
    • Stability more than 1%.
    • LCD display.
    • 3 auxiliary power supply outputs, each protected against short circuits and limited in current to 4A.
    • 1 Relay output for fault/sabotage signalling.
    • Integrated battery charger and battery monitoring.
    • Battery housing: 2 x 17Ah 12V.
    • Connectable to the loop.
    • Connectable to the RS485 BUS.
    • Dimensions (HxWxD): 497 x 380 x 97 mm.
    • Weight: 6 kg (without battery).
