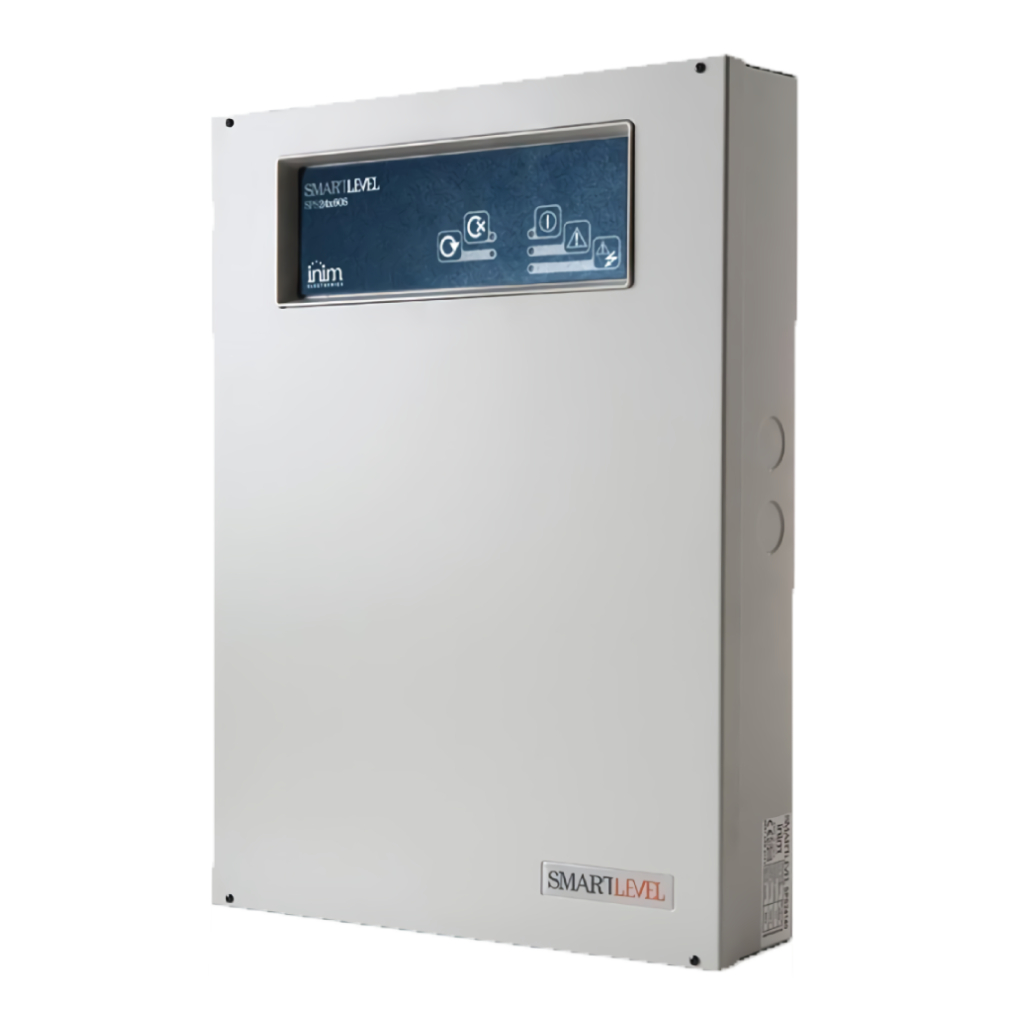

SPS24160S

https://smartsecur.es/web/image/product.template/18042/image_1920?unique=7246cd1

Switching power supply and battery charger. 27.6V/4A. INIM loop connection. In metal box

Not Available For Sale

    This combination does not exist.

    Contact Us


    Specifications for SPS24160S

    Device Inim Power supply

    - 24 V, 4 A power supply station with LED indicators and Inim loop connection.
    - Input voltage 230 V~ -15% +10%, 50-60 Hz.
    - Maximum mains consumption (230 V~): 1.1A.
    - Nominal output voltage 27.6Vdc, range 18 to 27.6Vdc.
    - Stability over 1%.
    - 1 Auxiliary power supply outputs, each protected against short-circuit and limited in current to 4A.
    - 2 relay outputs for fault/sabotage signalling.
    - Integrated battery charger and battery monitoring.
    - Battery housing: 2 x 17Ah 12V.
    - Dimensions (HxWxD): 497x380x97 mm.
    - Weight (without battery): 6 Kg.
    - Can be connected to the loop.
