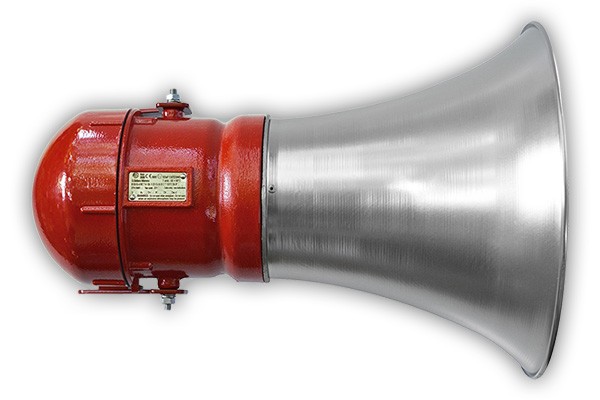

TFS07-EX
Acoustic technological alarm device. ATEX.
- Acoustic technological alarm device.
- Suitable for indoor and outdoor use.
- Suitable for hazardous areas:
- Zones 1 and 2 (gases).
- Zones 21 and 22 (powders).
- Sound pressure: 105 dB(A) at 1 m.
- Programmable functions:
- Alarm tone.
- 32 acoustic modes.
- Surface mounting by means of adjustable swivel bracket.
- Connection for Ø 3/4" pipe.
- Supply voltage: 12...24 V AC/DC.
- Maximum consumption in signalling: 800 mA.
- Degree of protection: IP6x.
- Operating temperature: -50 °C to +60 °C.
- Die-cast aluminium housing.
- Red colour.
- ABS horn in metallic grey.
- Dimensions (L × W × D): 390 × 280 × 280 mm.
- ATEX certification:
- II 2G Ex d IIC T4 Gb.
- II 2D Ex tb IIIC T130 °C Db IP6x.
