Technical characteristics

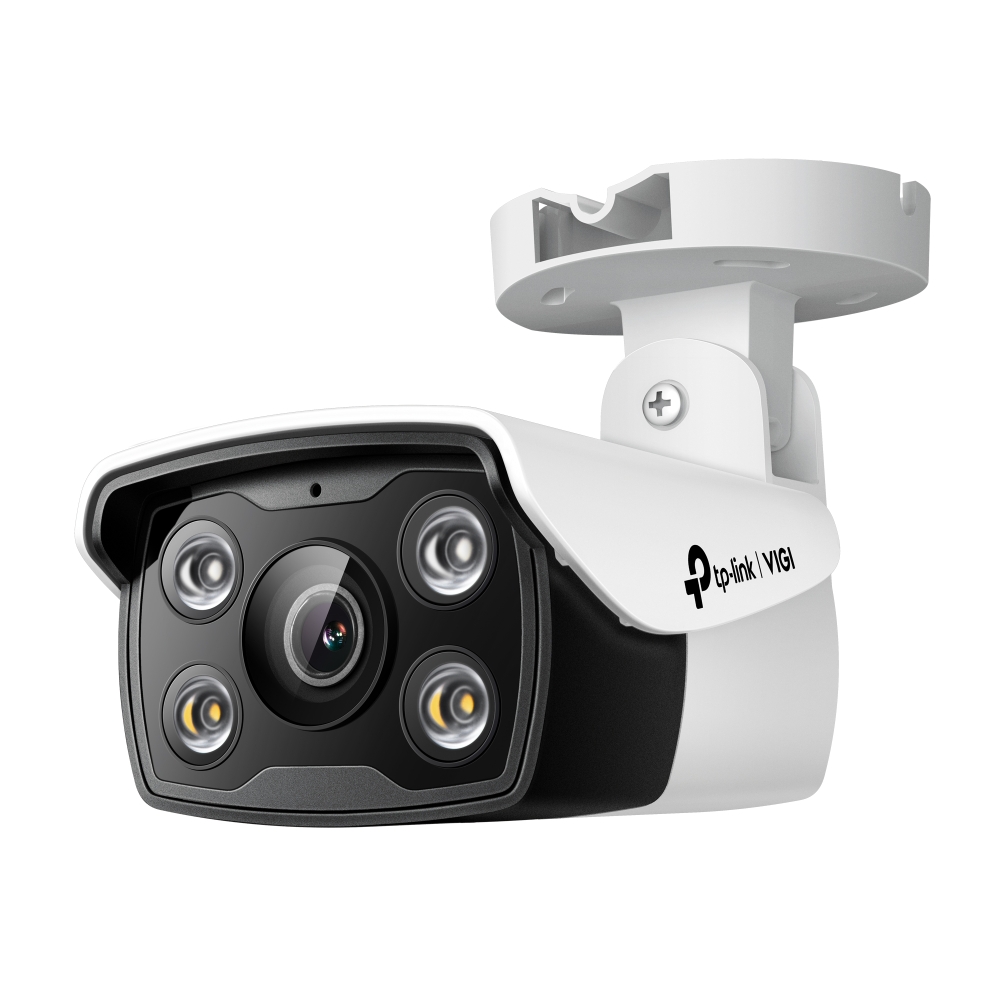

• TP-Link VIGI Bullet IP Camera
• 1/3" progressive scan CMOS sensor
• Maximum resolution of 4MP (2560 × 1440)
• Shutter speed from 1/3 s to 1/10000 s
• Minimum illumination: 0.005 lux (colour), 0 lux with IR or white light
• ICR (IR Cut filter) with automatic, programmed and forced modes
• Integrated IR and white light with up to 30 m range
• 6 mm fixed optics
• Angle of vision: H 50.6°, V 27.8°, D 58.8°

Video stream

• Stream 1 Resolutions: 2560 × 1440, 2304 × 1296, 2048 × 1280, 1920 × 1080, 1280 × 720
• Stream 1: 4MP@25 ips
• Stream 2: 640 × 480, 352 × 288, 320 × 240
• Bitrate control: CBR, VBR
• Stream 1 Compression: H.265+/H.265/H.264+/H.264
• Stream 2 compression: H.265/H.264

Functionalities

• WDR (DWDR)
• 3D DNR
• Smart IR
• BLC and HLC
• 90° and 270° image rotation
• Privacy masks for up to 4 zones

Smart functions

• Classification of persons and vehicles from camera
• Intrusion detection
• Line crossing
• Entry and exit of region
• Detection of abandoned and recalled objects
• Motion detection
• Camera tampering detection
• Abnormal sound detection

Audio

• Integrated two-way audio
• Built-in microphone and speaker
• G.711 alaw audio compression
• Environmental noise filtering

Storage

• Slot for microSD card up to 512 GB (card not included)

Red

• RJ45 10/100 Mbps Ethernet network interface
• Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF Profile S support
• Simultaneous viewing of up to 3 main streams and 3 substreams
• Supported software and apps: VIGI App, VIGI Security Manager and web browser

Food

• PoE IEEE 802.3af/at PoE, class 0
• Input 12 V DC ± 5 %
• Maximum power consumption: 8 W

Environmental

• Operating temperature: -30 °C to 60 °C
• IP67 dust and waterproof protection

Physical characteristics

• Material: plastic
• Wall, ceiling or pole installation
• 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotation 0°~360°
• Dimensions: 78,5 × 188,0 × 71,5 mm
• Net weight: 0.34 kg
• Gross weight: 0.50 kg

Content

• 4MP IR bullet IP camera with 6 mm fixed optics TPLINK-276 (VIGI C340)
• Mounting accessories
• Quick Start Guide

Certifications

• EC
• NTRA
• VCCI
• BSMI
• FCC
