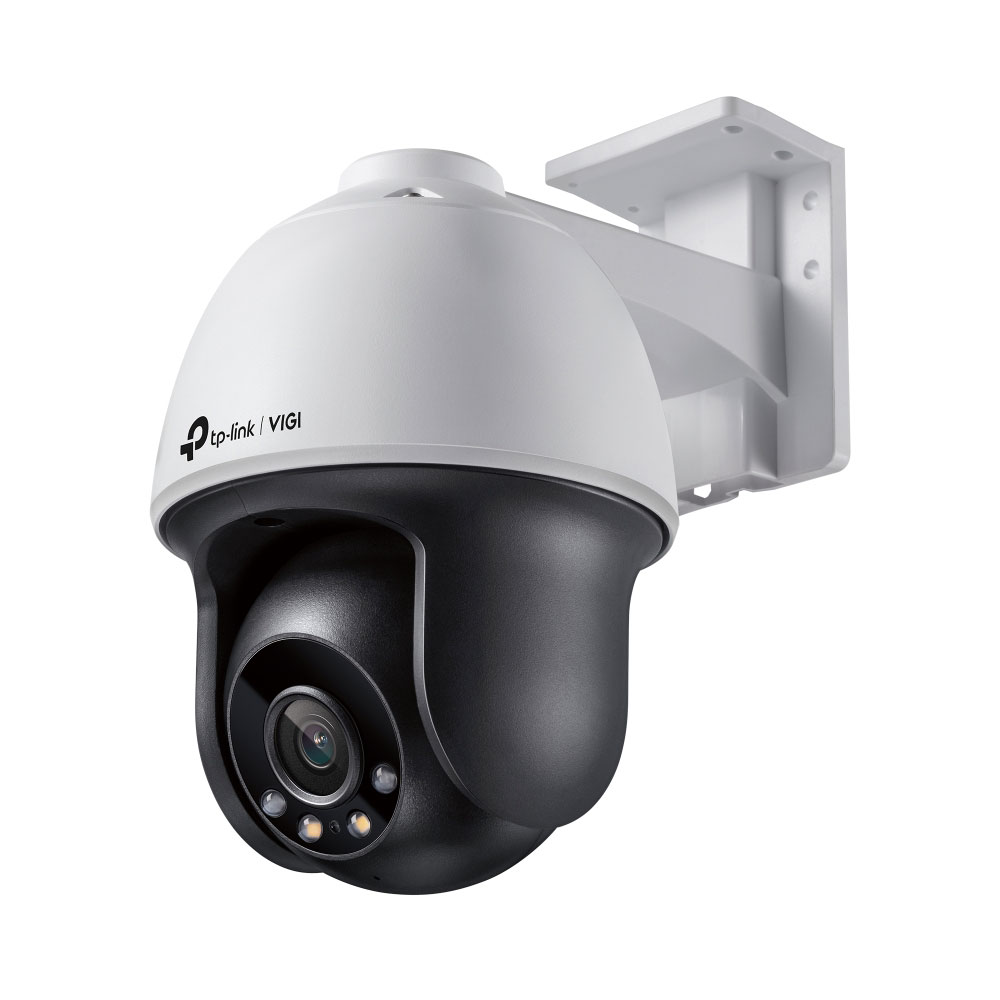

VIGI C540(4mm)
PTZ IP Dome **VIGI by TP-Link** 4MP Full Colour. Pan/Tilt, Smart IR + white light 30m, active audio deterrent, perimeter protection, microSD, IP66, PoE/12V.
Specifications for VIGI C540(4mm)
| Brand | TP-Link |
| Housing colour | White |
| Max Resolution | 4 Mpx |
| Objective | 4 mm |
| Audio | Integrated microphone, Integrated loudspeakers |
| IR range | 30 m |
| WDR | D-WDR |
| PoE | Yes (PoE) |
- 4 megapixel 1/3" CMOS sensor
- H.265+, H.264+, H.265, H.264 video formats
- Digital resolution: 4MP (2560x1440), 3MP (2304x1296), 2.6MP (2048x1280), 1080P (1920x1080), 720P (1280x720), VGA (640x480), CIF (352x288), QVGA (320x240)
- Stream 1: 4MP, 3MP, 2.6MP, 1080P, 720P (1~25/30 ips)
- Stream 2: VGA, CIF, QVGA (1~25/30 ips)
- Day/night mode with removable mechanical filter (ICR)
- Smart IR: 2 IR LEDs + 2 white LEDs, 30 metres
- 0.005 lux (colour), 0 lux with activated lighting
- 4 mm fixed optics
- Angle of view: 79°(H), 43°(V), 93°(D)
- Picture modes: BLC, HLC, Digital WDR, 3D-NR, Mirroring
- Brightness, contrast, saturation, sharpness, exposure, white balance adjustment
- Supports videosensor, 1 region of interest (ROI) and 4-zone privacy mask
- Perimeter protection with line crossing detection, intrusion detection, area entry/exit detection, etc
- Intelligently distinguishes people and vehicles from other objects
- Detection of abandoned/disposed objects
- Detection of anomalous sounds
- Detection of persons
- Vehicle detection
- When it detects suspicious movement, it automatically triggers a light and sound alarm to deter intruders
- Horizontal positioner: 0° ~ 350°
- Vertical positioner: 0° ~ 120° Vertical positioner: 0° ~ 120° Vertical positioner: 0° ~ 120° Vertical positioner: 0° ~ 120
- Manual speed: 8° ~ 44°/sec (H), 8° ~ 44°/sec (V)
- Preset speed: 44°/sec (H), 44°/sec (V)
- 300 presets
- 8 rounds of up to 8 presets each
- 3D positioning
- Built-in microphone and loudspeaker
- MicroSD card slot for up to 512GB (not included)
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
- Onvif compatible (Profile S)
- Compatible with Chrome, Firefox, Safari and Edge browsers
- Client software VIGI App, VIGI Security Manager, Web UI
- Power supply: 12V DC / PoE (802.3af/at)
- Maximum power consumption: 14 W (12V) / 16 W (PoE)
- Storage temperature range -40°C ~ +60°C
- Storage humidity <95% (non-condensing)
- Operating temperature range -30°C ~ +60°C
- Operating humidity of <95% (non-condensing)
- Degree of protection IP66
- Plastic housing
- Dimensions: 120 (W) x 198 (H) x 172 mm
- CE, RCM, BSMI, VCCI, RoHS, NTRA, KC Certifications
