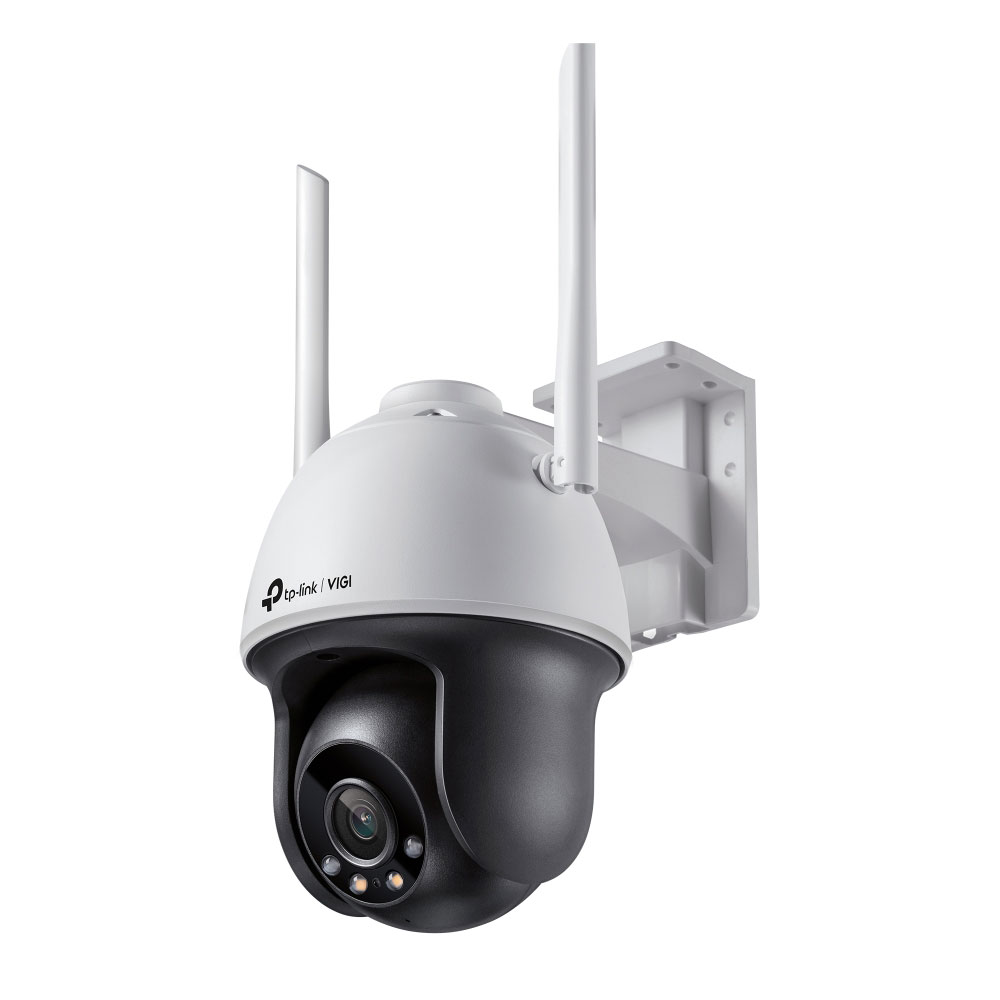

VIGI C540-W(4mm)

https://smartsecur.es/web/image/product.template/30268/image_1920?unique=54ce99a

PT Wi-Fi IP Dome **VIGI by TP-Link** 4MP Full Colour. Pan/Tilt, IR + white light 30m, active deterrent with audio, perimeter protection, microSD, IP66, PoE/12V.

Not Available For Sale

    This combination does not exist.

    Contact Us


    Specifications for VIGI C540-W(4mm)

    Brand TP-Link
    Housing colour White
    Max Resolution 4 Mpx
    Objective 4 mm
    Audio Integrated microphone, Integrated loudspeakers
    IR range 30 m
    WDR D-WDR
    PoE Yes (PoE)
    • 4 megapixel 1/3" CMOS sensor
    • H.265+, H.264+, H.265, H.264 video formats
    • Digital resolution: 4MP QHD (2560x1440), 3MP (2304x1296), 2.6MP (2048x1280), 1080P (1920x1080), 720P (1280x720), VGA (640x480), CIF (352x288), QVGA (320x240)
    • Stream 1: 4MP QHD, 3MP, 2.6MP, 1080P, 720P (1~25/30 ips)
    • Stream 2: VGA, CIF, QVGA (1~25/30 ips)
    • Day/night mode with removable mechanical filter (ICR)
    • Smart IR: 2 IR LEDs + 2 white LEDs, 30 metres
    • 0.005 lux (colour), 0 lux with activated lighting
    • 4 mm fixed optics
    • Angle of view: 79°(H), 43°(V), 93°(D)
    • Picture modes: BLC, HLC, Digital WDR, 3D-NR, Mirroring
    • Brightness, contrast, saturation, sharpness, exposure, white balance adjustment
    • Supports videosensor, 1 region of interest (ROI) and 4-zone privacy mask
    • Perimeter protection with line crossing detection, intrusion detection, area entry/exit detection, etc
    • Intelligently distinguishes people and vehicles from other objects
    • Detection of abandoned/disposed objects
    • Scene change detection
    • Detection of anomalous sounds
    • Detection of persons
    • Vehicle detection
    • When it detects suspicious movement, it automatically triggers a light and sound alarm to deter intruders
    • Horizontal positioner: 0° ~ 350°
    • Vertical positioner: 0° ~ 120° Vertical positioner: 0° ~ 120° Vertical positioner: 0° ~ 120° Vertical positioner: 0° ~ 120
    • Manual speed: 8° ~ 44°/sec (H), 8° ~ 44°/sec (V)
    • Preset speed: 44°/sec (H), 44°/sec (V)
    • 300 presets
    • 8 rounds of up to 8 presets each
    • 3D positioning
    • Built-in microphone and loudspeaker
    • MicroSD card slot for up to 512GB (not included)
    • Built-in 2.4 GHz IEEE802.11b/g/n WiFi
    • WiFi security: PWPA / WPA2-PSK
    • AP mode to create a WiFi network as an access point and AP Client mode to connect to an existing WiFi network
    • Network interface: RJ45 (10/100 Base-T)
    • Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
    • Onvif compatible (Profile S)
    • Compatible with Chrome, Firefox, Safari and Edge browsers
    • Client software VIGI App, VIGI Security Manager, Web UI
    • Power supply: 12V DC, 1A
    • Maximum power consumption: 15.3 W
    • Storage temperature range -40°C ~ +60°C
    • Storage humidity <95% (non-condensing)
    • Operating temperature range -30°C ~ +60°C
    • Operating humidity of <95% (non-condensing)
    • Degree of protection IP66
    • Plastic housing
    • Dimensions: 120 (W) x 198 (H) x 172 mm (excl. antennas)
    • Including power adapter
    • Certifications CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
