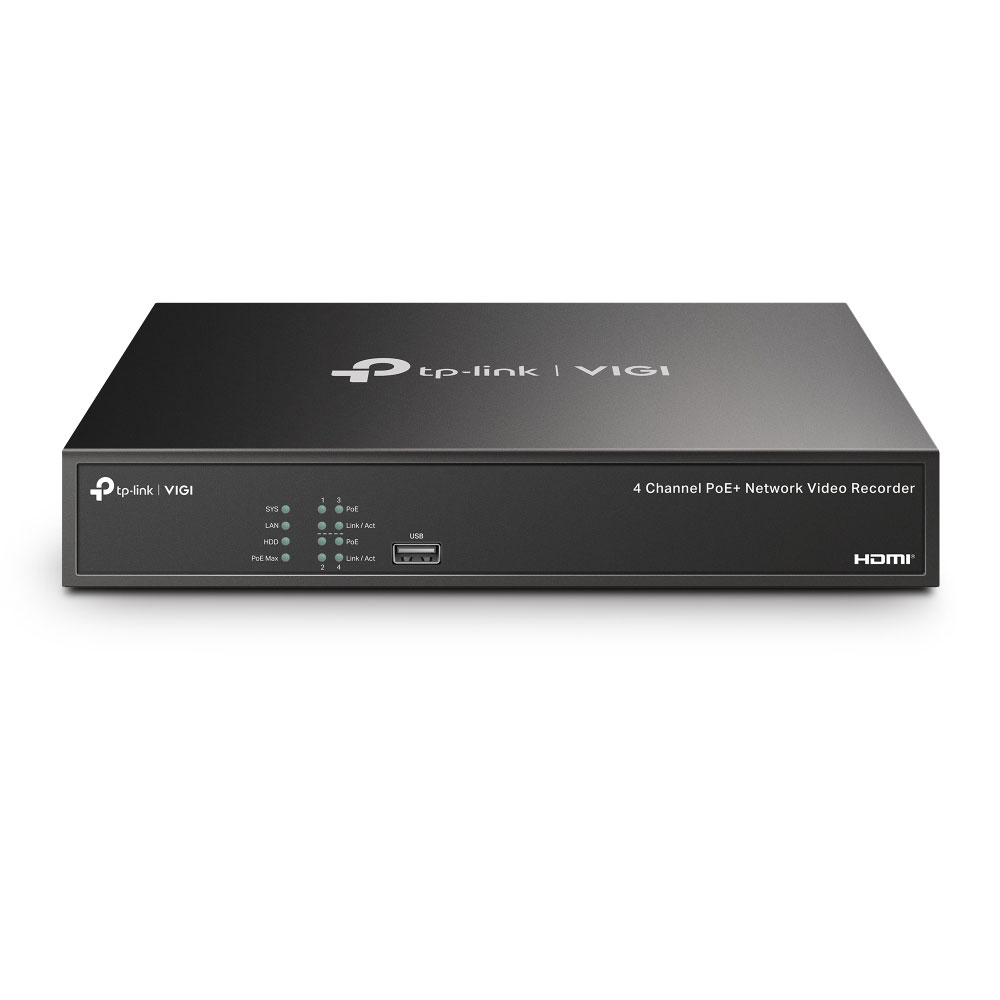

VIGI NVR1004H-4P
4-channel **VIGI by TP-Link** IP NVR with PoE. H.265+, 80 Mbps, HDMI 4K + VGA, 4 PoE+, 24/7 recording, 1 SATA HDD.
Specifications for VIGI NVR1004H-4P
| Brand | TP-Link |
| Max Resolution | 8 Mpx |
| Video outputs | 1 HDMI, 1 VGA |
| Ports PoE | 4 PoE |
| HDD capacity | 1 HDD |
| IP channels | 4 IP Channels |
| Bandwidth | 80 Mbps |
- 4 IP channels
- Video compression: H.265+, H.265, H.264+ and H.264
- Simultaneous HDMI (4K) and VGA (1080P) video outputs
- Output division: 1, 4
- 1 RCA audio input / 1 RCA audio output
- Audio compression: G.711a, G.711u, G726
- Recording resolution: 8MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF, QCIF
- Bandwidth: 80 Mbps inbound and 60 Mbps outbound
- Decoding capacity:
- 2 channels at 8MP (25 fps)
- 4 channels at 4MP (25/30 fps)
- 3 channels at 5MP (25 fps)
- Recording modes:
- Manual
- Calendar
- Video motion sensor
- General alarm:
- Video motion sensor
- Video manipulation
- Line crossing detection
- Intrusion detection
- Entry/exit detection in an area
- Loitering detection
- Detection of abandoned/disposed objects
- Scene change detection
- Vehicle detection
- Detection of persons
- Detection of anomalous sounds
- Smart frame
- Anomaly alarm:
- Loss of video
- Offline and IP conflict
- Disk exception
- Login exception
- Alarm link:
- Recording
- White light alarm
- Buzzer
- Register
- Audible alarm
- Synchronised playback of up to 4 channels
- Internal capacity for 1 SATA HDD up to 10TB (sold separately)
- 4 PoE+ (802.3af/at) 10/100Mbps ports
- Total PoE delivery of 53 W with a limit of 30 W per port
- RJ45 Fast Ethernet network port (10/100Mbps)
- Network Protocols: UPnP, NTP, SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
- ONVIF S and CGI compatible
- Compatible with Chrome, Firefox and Edge web browsers
- Compatible with Android and iOS devices
- Communication ports: 2 USB 2.0 ports
- Power supply: 53V DC, 1.31 A
- Power consumption: 4.25 W (excluding HDD) / 13.10 W (including HDD)
- Storage temperature range -40°C ~ +70°C
- Storage relative humidity 10%~90% (non-condensing)
- Operating temperature range -10°C ~ +55°C
- Operating relative humidity of 10%~90% (non-condensing)
- Dimensions: 246,2 (W) x 45 (H) x 148,2 mm
- Table-top installation
- Includes power adapter, power cords, mouse, rubber feet and quick installation guide
- CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI Certification
