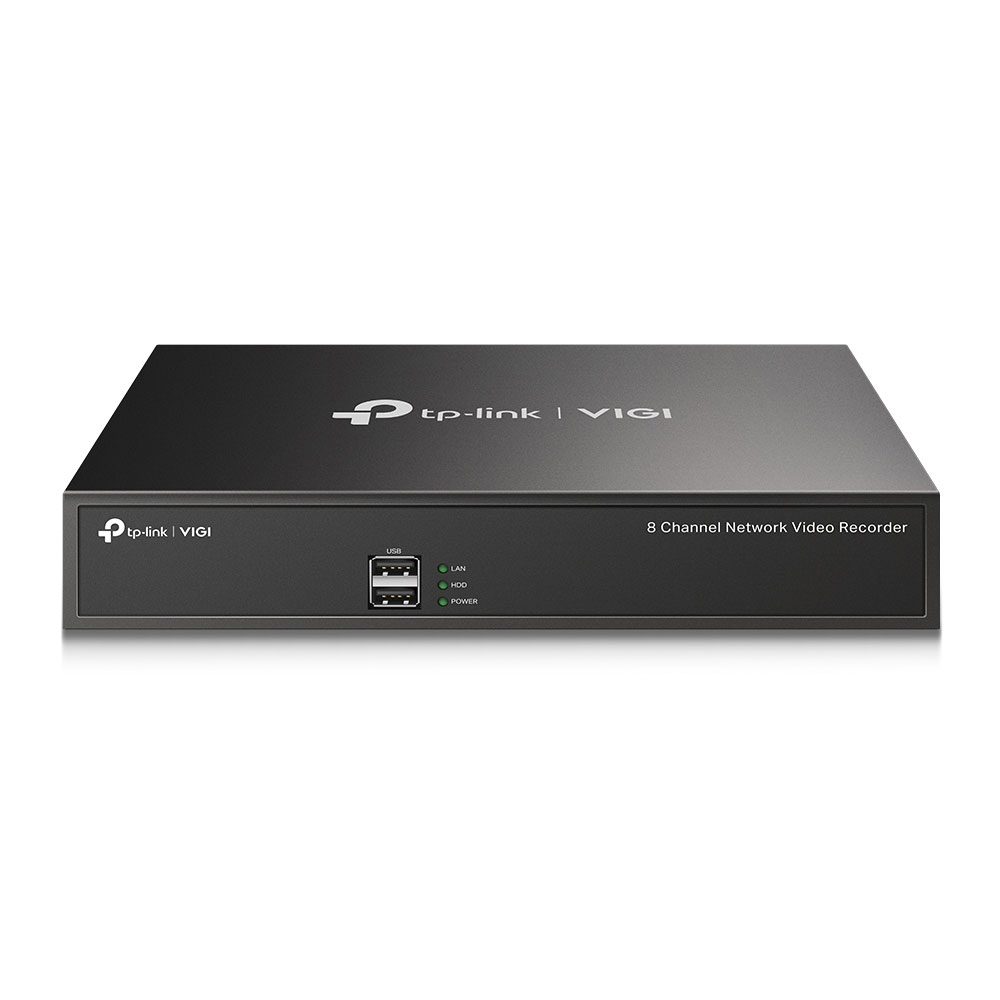

VIGI NVR1008H
NVR IP **VIGI by TP-Link** 8 channels. H.265+, 80 Mbps, HDMI 4K + VGA, 24/7 recording, 1 SATA HDD, 12V DC.
Specifications for VIGI NVR1008H
| Brand | TP-Link |
| Max Resolution | 8 Mpx |
| Video outputs | 1 HDMI, 1 VGA |
| HDD capacity | 1 HDD |
| IP channels | 8 IP Channels |
| Bandwidth | 80 Mbps |
- 8 IP channels
- Video compression: H.265+, H.265, H.264+ and H.264
- Simultaneous HDMI (4K) and VGA (1080P) video outputs
- Output division: 1, 4, 6, 8
- 1 RCA audio input / 1 RCA audio output
- Audio compression: G.711a, G.711u, G726
- Recording resolution: 8MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF, QCIF
- Bandwidth: 80 Mbps inbound and 60 Mbps outbound
- Decoding capacity:
- 2 channels at 8MP (25 fps)
- 2 channels at 5MP (30 fps)
- 4 channels at 4MP (25 fps)
- 4 channels at 3MP (30 fps)
- 8 channels at 1080P (25 fps)
- Recording modes:
- Manual
- Calendar
- Video motion sensor
- General alarm:
- Video motion sensor
- Video manipulation
- Line crossing detection
- Intrusion detection
- Entry/exit detection in an area
- Detection of abandoned/disposed objects
- Vehicle detection
- Detection of persons
- Smart frame
- Anomaly alarm:
- Loss of video
- Offline and IP conflict
- Disk exception
- Login exception
- Alarm link:
- Recording
- White light alarm
- Buzzer
- Register
- Audible alarm
- Synchronised playback of up to 8 channels
- Internal capacity for 1 SATA HDD up to 16TB (sold separately)
- RJ45 Fast Ethernet network port (10/100Mbps)
- Network protocols: UPnP, NTP
- ONVIF and CGI compatible
- Compatible with Chrome, Firefox and Edge web browsers
- Compatible with Android and iOS devices
- Communication ports: 2 USB 2.0 ports
- Power supply: 12V DC, 1.5 A
- Power consumption: 4.25 W (excluding discs)
- Storage temperature range -40°C ~ +70°C
- Storage relative humidity 10%~90% (non-condensing)
- Operating temperature range -10°C ~ +55°C
- Operating relative humidity of 10%~90% (non-condensing)
- Dimensions: 246,2 (W) x 45 (H) x 148,2 mm
- Net weight: 590 g
- Gross weight: 950 g
- Table-top installation
- Includes power adapter, hardware, mouse, rubber feet and quick installation guide
- CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI Certification
