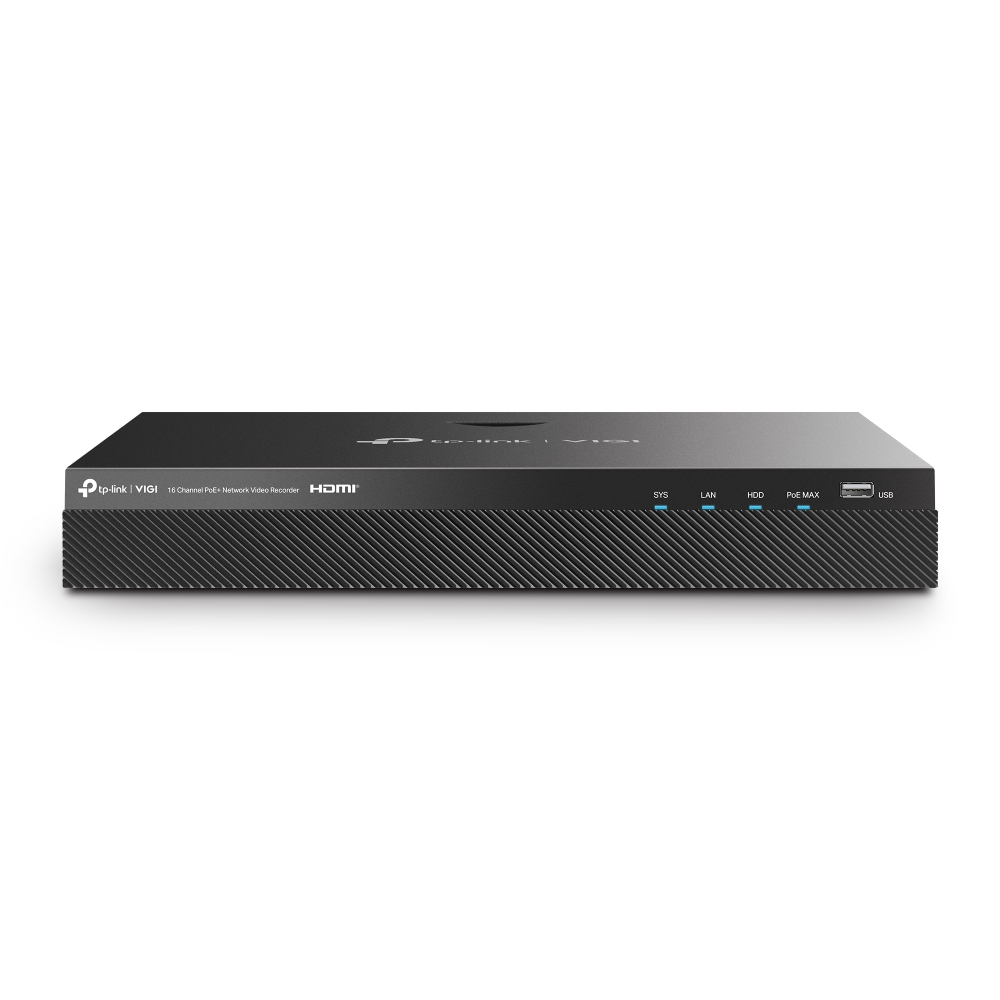

VIGI NVR2016H-16MP
NVR IP **VIGI by TP-Link** 16 channels with **16 PoE+**. H.265+, **320 Mbps**, 4K HDMI + VGA independent, 2-way audio, alarm I/O, **2 HDD**, ONVIF, VIGI remote management.
Specifications for VIGI NVR2016H-16MP
| Brand | TP-Link |
| Max Resolution | 8 Mpx |
| Video outputs | 1 HDMI, 1 VGA |
| Ports PoE | 16 PoE |
| HDD capacity | 2 HDD |
| IP channels | 16 IP Channels |
| Bandwidth | 320 Mbps |
- Capacity for 16 IP channels with multi-channel visualisation: 1/4/6/8/9/16
- Bandwidth: 320 Mbps inbound / 320 Mbps outbound
- Video outputs: HDMI (up to 3840 × 2160 at 30 Hz) and VGA (up to 1920 × 1080 at 60 Hz) independent
- Video compression: H.265+, H.265, H.264+, H.264
- Audio compression: G.711A, G.711U, G.726
- Recording resolutions: 8MP, 5MP, 4MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Decoding capacity:
- 10 3MP channels at 25 fps
- 16 channels 1080P at 25 fps
- 4 channels 8MP, 6 channels 5MP, 8 channels 4MP at 30 ips
- Synchronous playback of up to 16 channels
- Recording modes: manual, programmed, motion detection
- Playback modes: instantaneous, regular, event-driven, or tags
- Playback functions: digital zoom, frame-by-frame forward, clip export, record lock, audio on/off
- Alarms for video analytics events:
- Motion detection
- Line crossing detection
- Intrusion detection
- Region input/output detection
- Detection of abandoned/removed objects
- Loitering detection
- Abnormal sound detection
- Scene change detection
- Detection of persons
- Vehicle detection
- Smart Frame
- System alarms: video loss, IP conflict, disconnection, disk failure, login failure, fan failure
- Alarm linking: recording, white light, buzzer, alarm output, logging
- RJ-45 10/100/1000 Mbps network interface
- Network protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, SMTP, SMTP, RTP, SSL/TLS, IPv4, ARP, ICMP, UPnP
- ONVIF Profile S and CGI compliant
- Remote access from VIGI App, VIGI Security Manager, Web UI and VIGI VMS
- Supported Browsers: Chrome, Firefox, Edge, Safari
- Alarm inputs: 6
- Alarm outputs: 4
- Audio interface: 1 RCA input / 1 RCA output
- ESATA interface for external storage
- 2 internal SATA bays for HDD up to 16 TB each (HDD not included)
- PoE+: 16 RJ-45 10/100 Mbps ports 802.3af/at compliant, max. 30 W per port, 140 W total
- USB ports: 1 front USB 2.0, 1 rear USB 3.0
- Power supply: DC 53,5V / 3,37A
- Maximum power consumption: 6.2 W without disk / 40 W with disk
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 10-90 % non-condensing
- Dimensions: 330 × 285 × 45 mm
- Net weight: 2.2 kg
- Gross weight: 4.2 kg
- Certifications: CE, NTRA, BSMI, VCCI, FCC, HDMI, ONVIF
