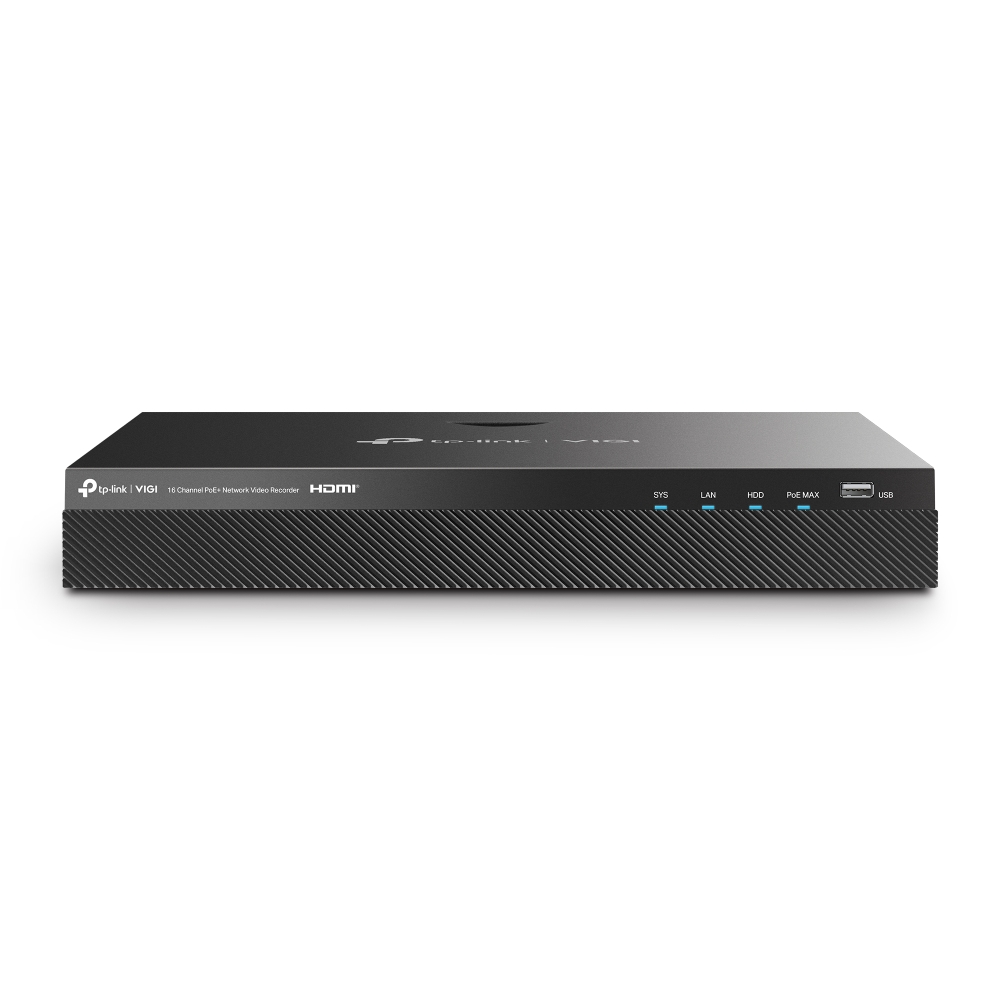

VIGI NVR2016H-16P
NVR IP **VIGI by TP-Link** 16 channels with PoE+. H.265+, 160 Mbps, HDMI 4K + VGA, 2-way audio, alarm I/O, ONVIF, up to 32 TB, VIGI remote management.
Specifications for VIGI NVR2016H-16P
| Brand | TP-Link |
| Max Resolution | 8 Mpx |
| Video outputs | 1 HDMI, 1 VGA |
| Ports PoE | 16 PoE |
| HDD capacity | 2 HDD |
| IP channels | 16 IP Channels |
| Bandwidth | 160 Mbps |
- Up to 16 IP channels with multi-channel display: 1/4/6/8/9/16
- Bandwidth: 160 Mbps incoming / 160 Mbps outgoing
- Video outputs: HDMI (3840×2160@30Hz, 1920×1080@60Hz...) and VGA (1920×1080@60Hz, etc.) independent
- Video compression: H.265+, H.265, H.264+, H.264
- Audio compression: G.711A, G.711U, G.726
- Recording resolutions: 8MP, 5MP, 4MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
- Decoding capacity:
- 10 channels 1080P at 25 fps
- 2-channel 8MP, 4-channel 5MP, 5-channel 4MP, 6-channel 3MP at 30 fps
- Synchronous playback of up to 16 channels
- Recording modes: manual, programmed, motion detection
- Playback modes: instant, regular, by tags or events
- Playback functions: digital zoom, clip export, search by time, event or tags, record lock, etc
- RJ-45 10/100/1000 Mbps network interface
- Network protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, SMTP, SMTP, RTP, SSL/TLS, IPv4, ICMP, ARP, UPnP
- ONVIF Profile S and CGI compliant
- Remote access from VIGI App, VIGI Security Manager, Web and VMS
- Supported browsers: Chrome (57+), Firefox (52+), Edge (91+), Safari (11+)
- Alarm inputs: 6
- Alarm outputs: 4
- Audio interface: 1 RCA input / 1 RCA output
- Alarms for video analytics events:
- Motion detection
- Line crossing detection
- Intrusion detection
- Region input/output detection
- Detection of abandoned/removed objects
- Loitering detection
- Abnormal sound detection
- Scene change detection
- Detection of persons
- Vehicle detection
- Video manipulation
- System alarms: video loss, disk failure, IP conflict, disconnect, login or fan failure
- Alarm linking: recording, white light, buzzer, alarm output, notification
- ESATA interface for additional external storage
- 2 internal SATA bays for HDD up to 16 TB each (HDD not included)
- PoE+: 16 RJ-45 10/100 Mbps ports with 802.3af/at standard, up to 30 W per port, 90 W total
- USB ports: 1 front USB 2.0, 1 back USB 3.0
- Power supply: 53.5V DC / 2.43A
- Power consumption: 6.2 W without disk / 40 W with disk
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity for operation and storage: 10-90 % non-condensing
- Dimensions: 330 × 285 × 45 mm
- Net weight: 2.2 kg
- Gross weight: 4.2 kg
- Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI, ONVIF
