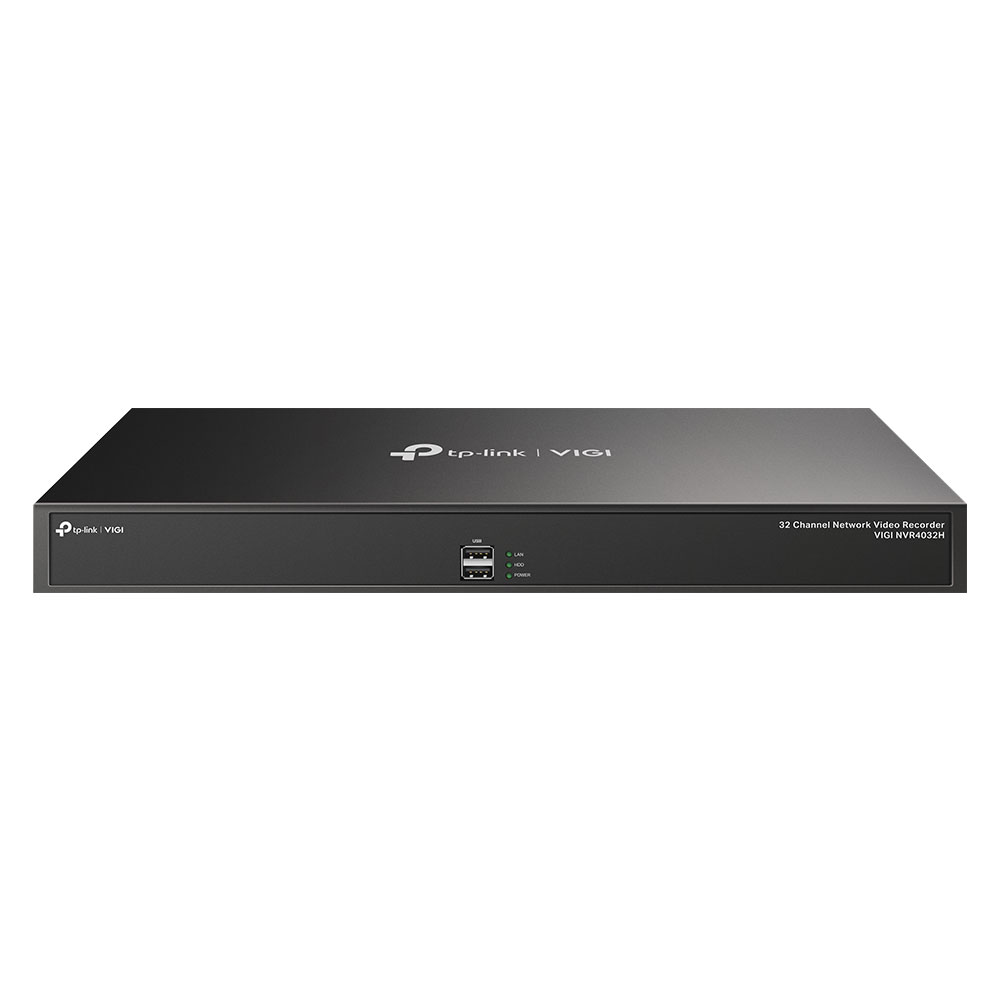

VIGI NVR4032H
NVR IP **VIGI by TP-Link** 32 channels. H.265+, 320 Mbps I/O, 4K HDMI + VGA independent, 16 IN / 4 OUT alarm, up to 4 SATA HDD, dual RJ45 Gigabit, 24/7 recording.
Specifications for VIGI NVR4032H
| Brand | TP-Link |
| Max Resolution | 8 Mpx |
| Video outputs | 1 HDMI, 1 VGA |
| HDD capacity | 4 HDD |
| IP channels | 32 IP Channels |
| Bandwidth | 320 Mbps |
- 32 IP channels
- Video compression: H.265+, H.265, H.264+ and H.264
- Independent HDMI (4K) and VGA (1080P) video outputs
- Output division: 1, 4, 6, 8, 8, 9, 16, 25, 32, 36
- 1 RCA audio input / 1 RCA audio output
- Audio compression: G.711a, G.711u, G726
- Recording resolution: 8MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF, QCIF
- Bandwidth: 320 Mbps inbound and 320 Mbps outbound
- Decoding capacity:
- 4 channels at 8MP (25 fps)
- 6 channels at 5MP (25 fps)
- 8 channels at 4MP (25 fps)
- 10 channels at 3MP (25 fps)
- 16 channels at 1080P (25 fps)
- Recording modes:
- Manual
- Calendar
- Video motion sensor
- General alarm:
- Video motion sensor
- Video manipulation
- Line crossing detection
- Intrusion detection
- Entry/exit detection in an area
- Detection of abandoned/disposed objects
- Vehicle detection
- Detection of persons
- Anomaly alarm:
- Loss of video
- Offline and IP conflict
- Disk exception
- Login exception
- Fan exception
- Alarm link:
- Recording
- White light alarm
- Buzzer
- Register
- Audible alarm
- Synchronised playback of up to 16 channels
- 16 inputs / 4 alarm outputs
- Internal capacity for 4 SATA HDDs up to 16TB (sold separately)
- Supports RAID1, RAID5 (software-implemented)
- 2 RJ45 Gigabit Ethernet network ports (10/100/1000Mbps)
- Network protocols: UPnP, NTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
- ONVIF S and CGI compatible
- Compatible with Chrome, Firefox and Edge web browsers
- Compatible with Android and iOS devices
- Communication ports: 2 USB 2.0 ports, 1 USB 3.0 port, 1 RS232 port
- Power supply: 100V ~ 240V AC, 50/60 Hz, 1.5 A
- Power consumption: 5 W (excluding HDD) / 48 W (including HDD)
- Storage temperature range -40°C ~ +70°C
- Storage relative humidity 10%~90% (non-condensing)
- Operating temperature range -10°C ~ +55°C
- Operating relative humidity of 10%~90% (non-condensing)
- Dimensions: 440 (W) x 44 (H) x 330 mm
- Net weight: 4 kg
- Gross weight: 5.2 kg
- Tabletop or rack installation
- Includes power cord, hardware, mouse, rubber feet and quick installation guide
- CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI Certification
